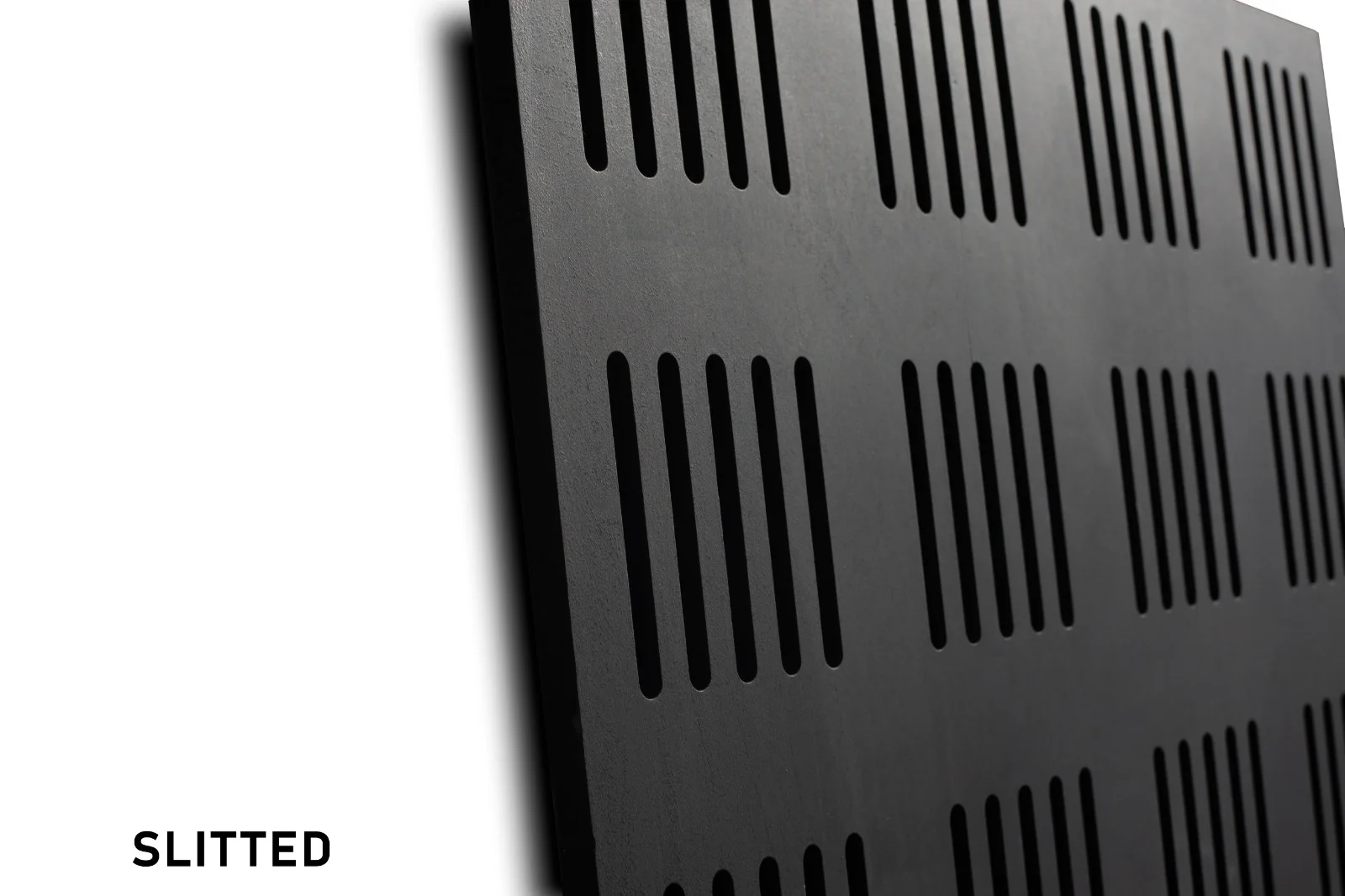

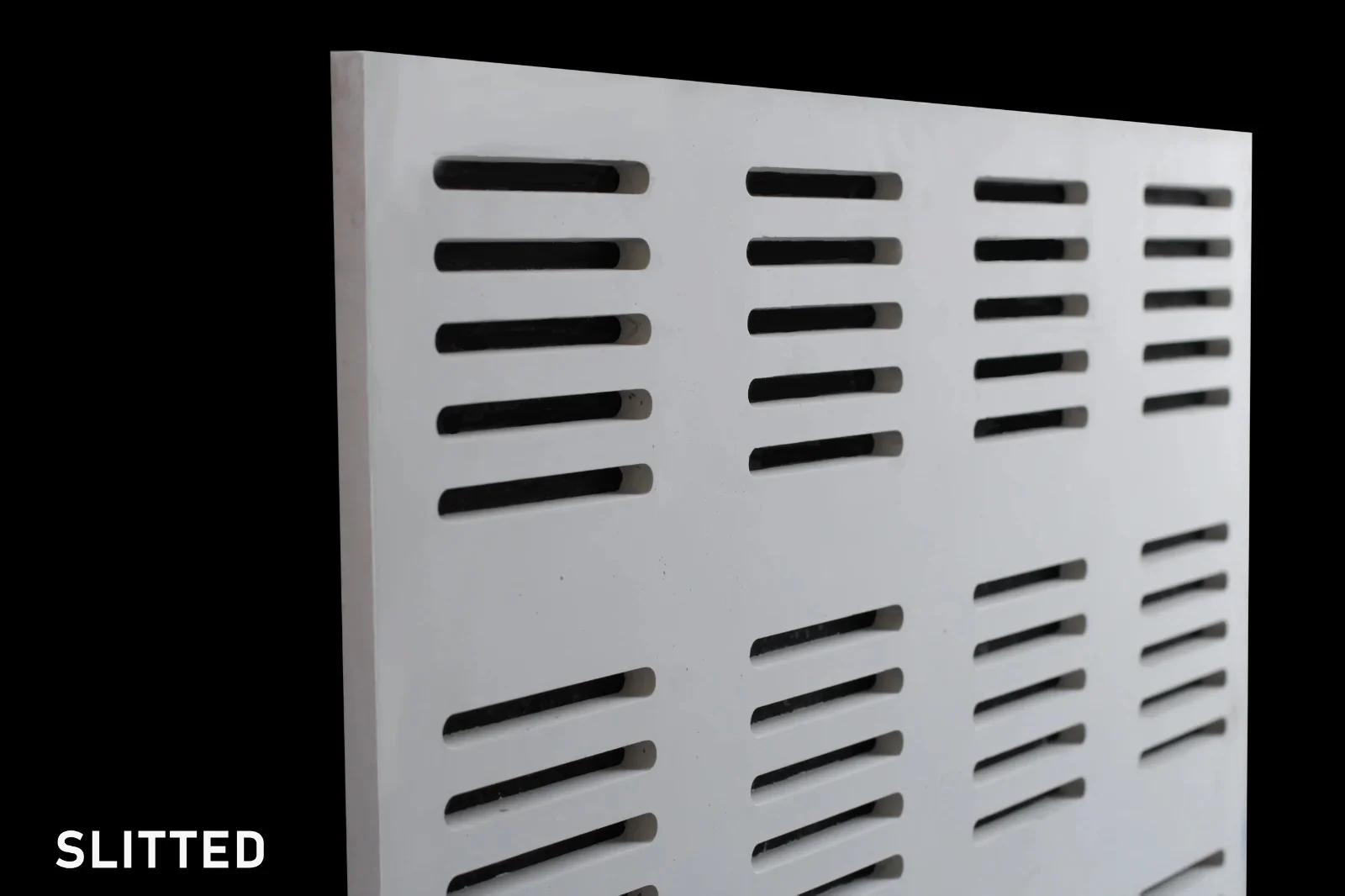

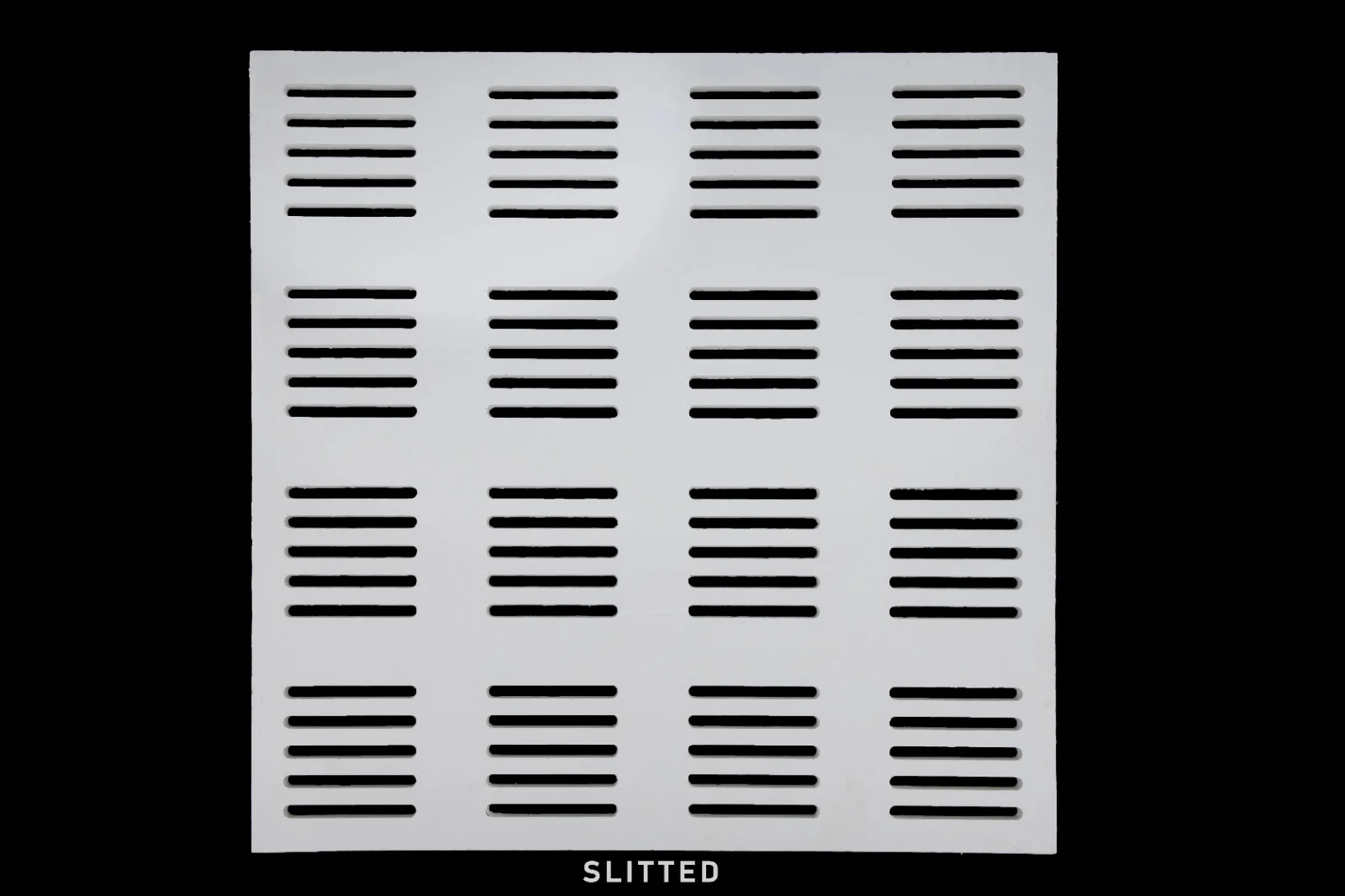

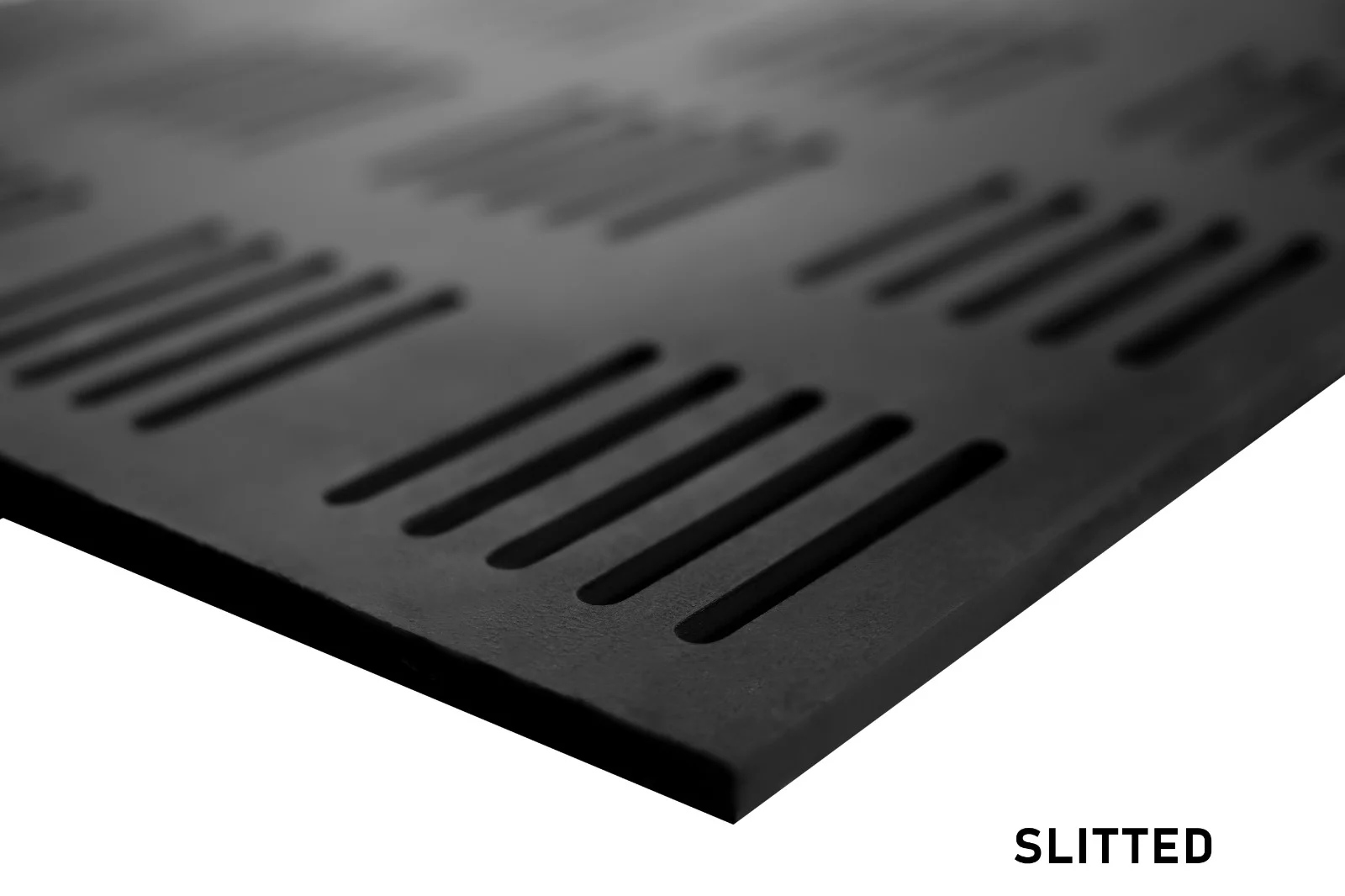

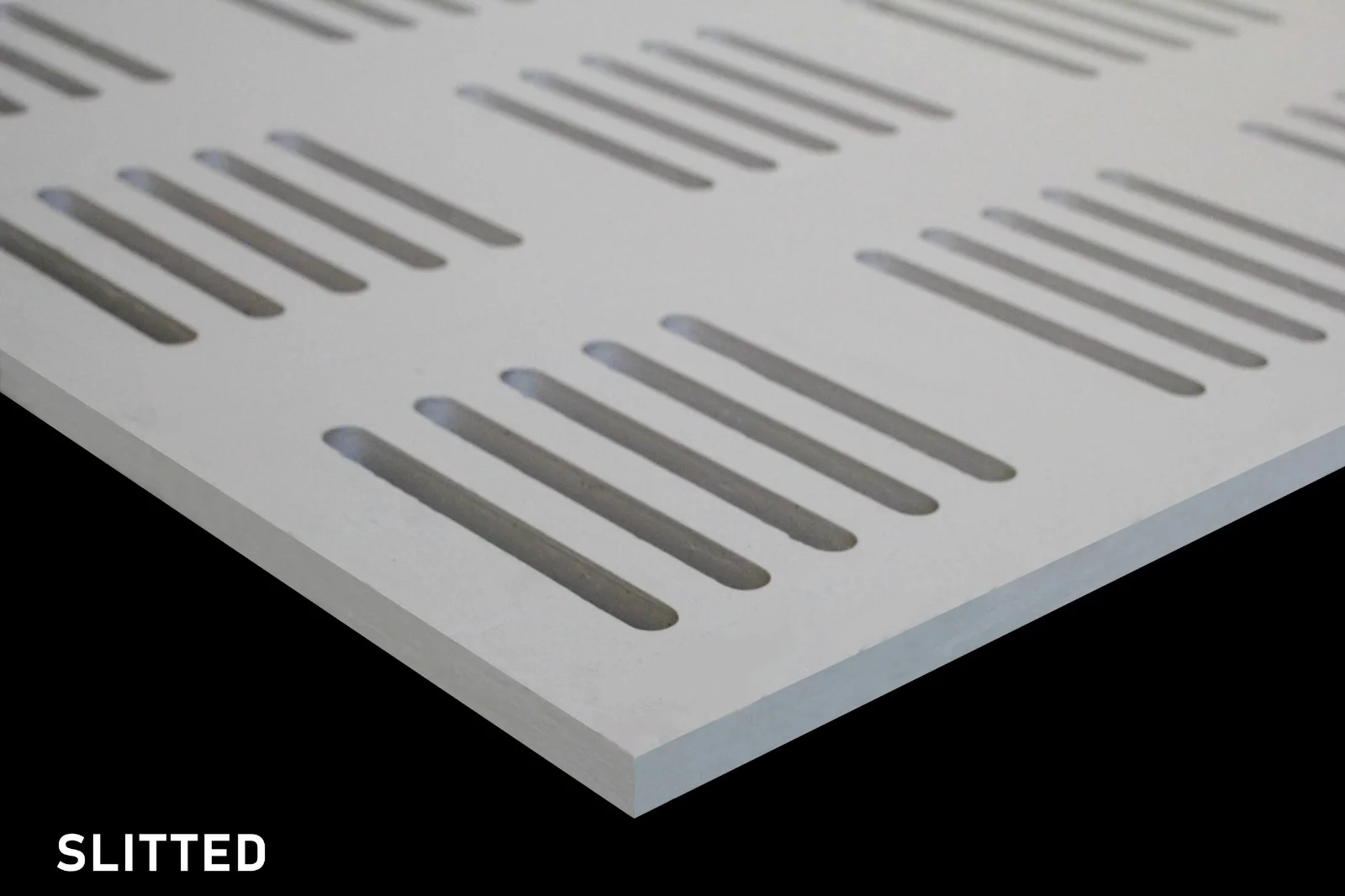

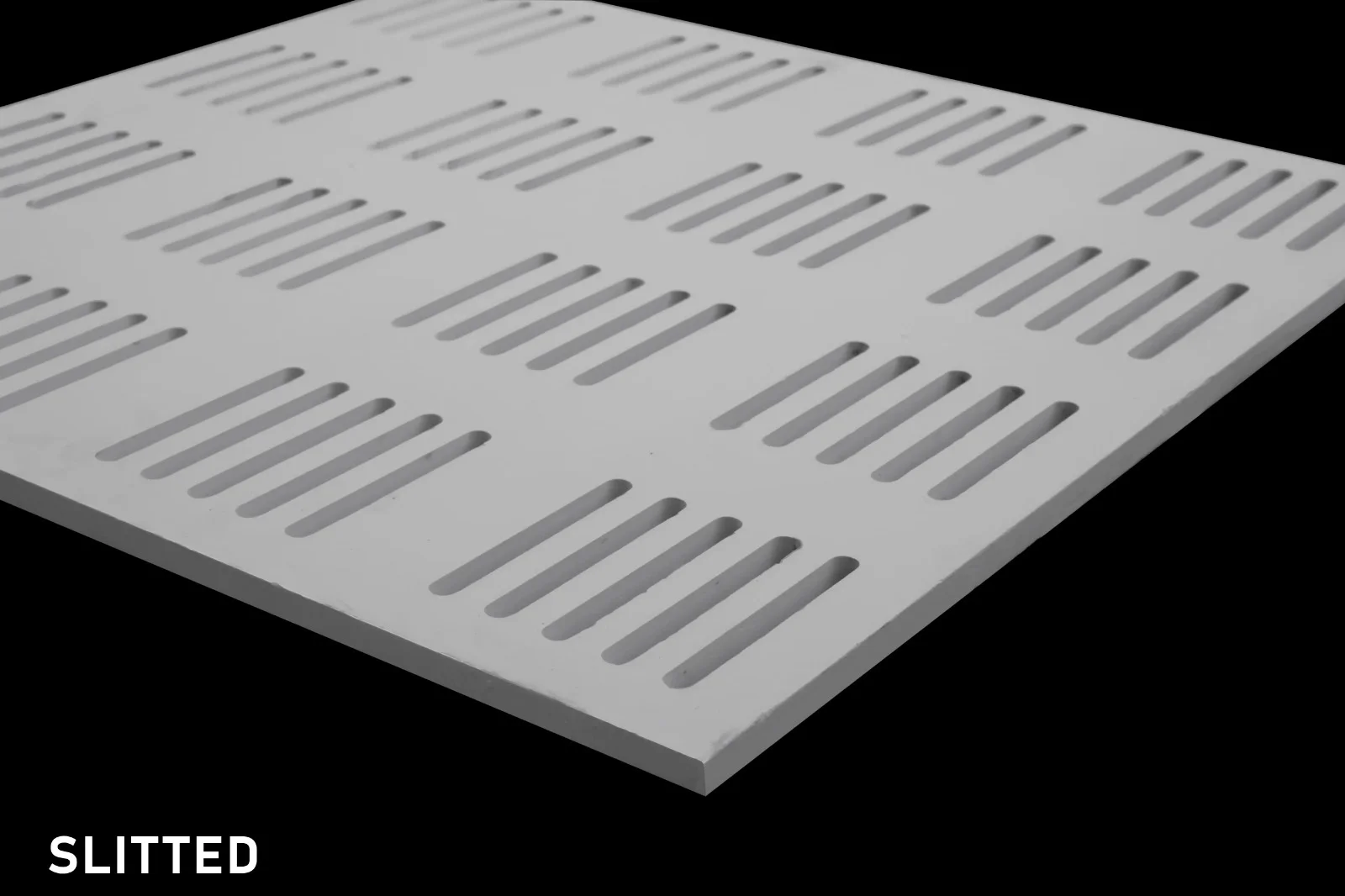

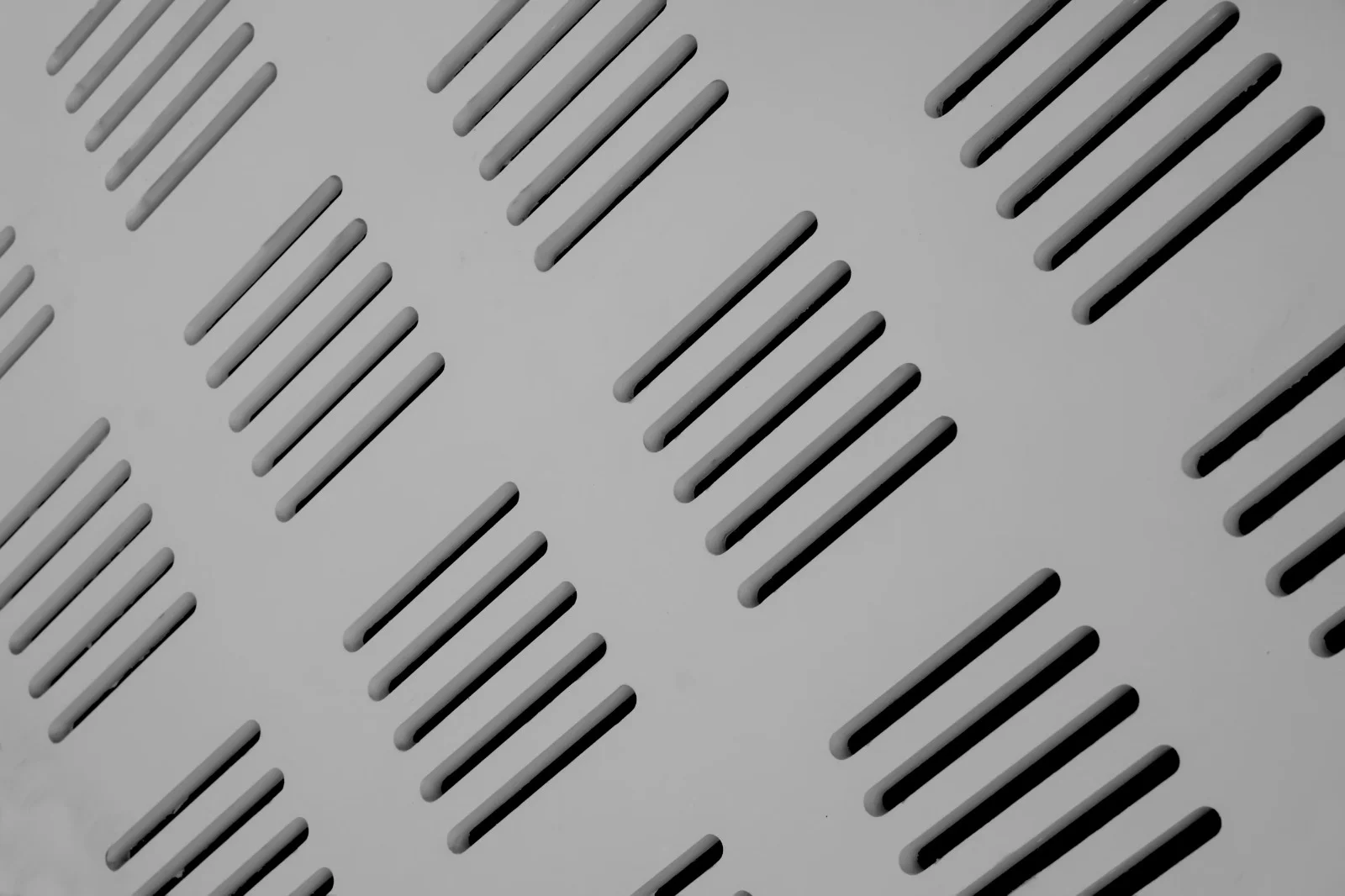

Slitted Acoustical Ceiling Tile
Elevated Indoor Atmosphere: GRG Material and Elegance of Slitted Acoustical Ceiling
drag
Key Features
- Superior built quality with long-lasting life
- Aesthetic, wide & versatile designs
- Easy & economical installation
- Bend - proof panels
- Paperless & fully sustainable
- Highly moisture & fire resistant
- Customized creations
- Free from termite & vermin
- Available in Z-black color
BUILD QUALITY
- T-grid & joint less installation systems
- Ceilling & wall installation
- Modified curved panels
- Reinforced with pre-stressed glass fiber
- Boot time crack-free drop tested
- Exposed gypsum surface
- Class 0' fire resistant
- Made of gypsum & glass fiber
- No use of paper
- Sun-dried panels
- Safe material
- 100% recyclable & incombustible
- Enhanced indoor climate conditionfa
SUSTAINABLE PRODUCT
Description
Installation Video
Specification
T-Grid
Main : 24x32 mm
Cross : 24x26 mm
| Size | 595 x 595 mm (+/-3mm) |
|---|---|
| Thickness | 12 mm |
| Weight | 3.85 - 4.25 kg |
| Packing | 4 Panels |
| Compressive Strength | 7.6 N/mm2 |
| Static Bending | 4.7 N/mm2 |
| Fire Propagation | Non Combustible Class 0 |
| Flame Spread | Class 1 |
Seamless
G.I. Ceilling Section : 85x25 mm
Intermediate : 45x15 mm
L-Wall Angle : 22x12 mm
| Smoke & Toxic Fume | Rate 0 |
|---|---|
| N.R.C. Value | 0.60 0.75 (With 50mm Mineral Woll Back) |
| S.T.C. Value | 35 |
| K-Value (THermal Conductivity) | 0.45 W/mK |
| RH Value (Humidified Deflection) | RH99 |
| Static Bending | 4.7 N/mm2 |
| Fire Propagation | Non Combustible Class 0 |
| Flame Spread | Class 1 |
Documents
Test Reports

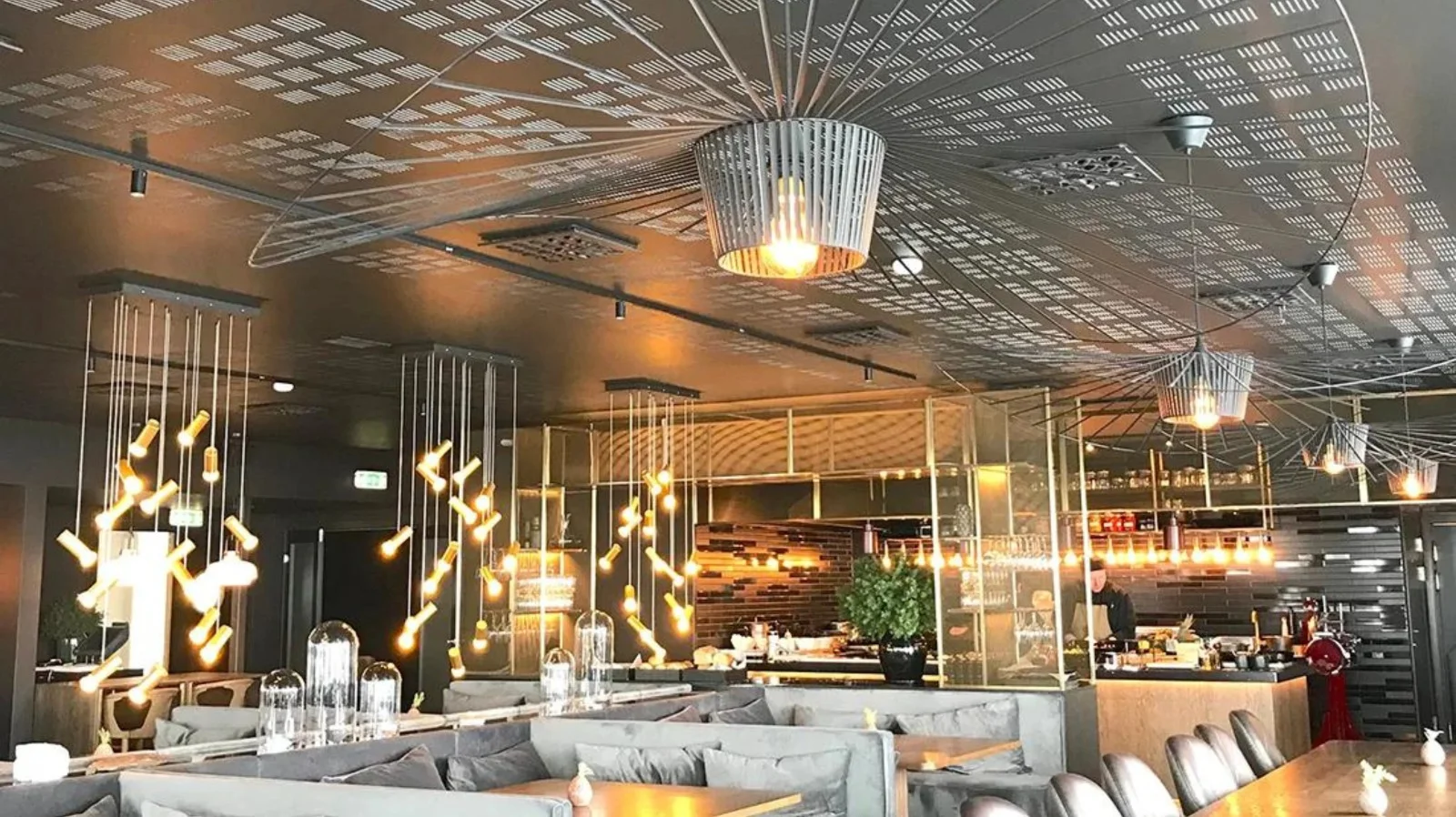

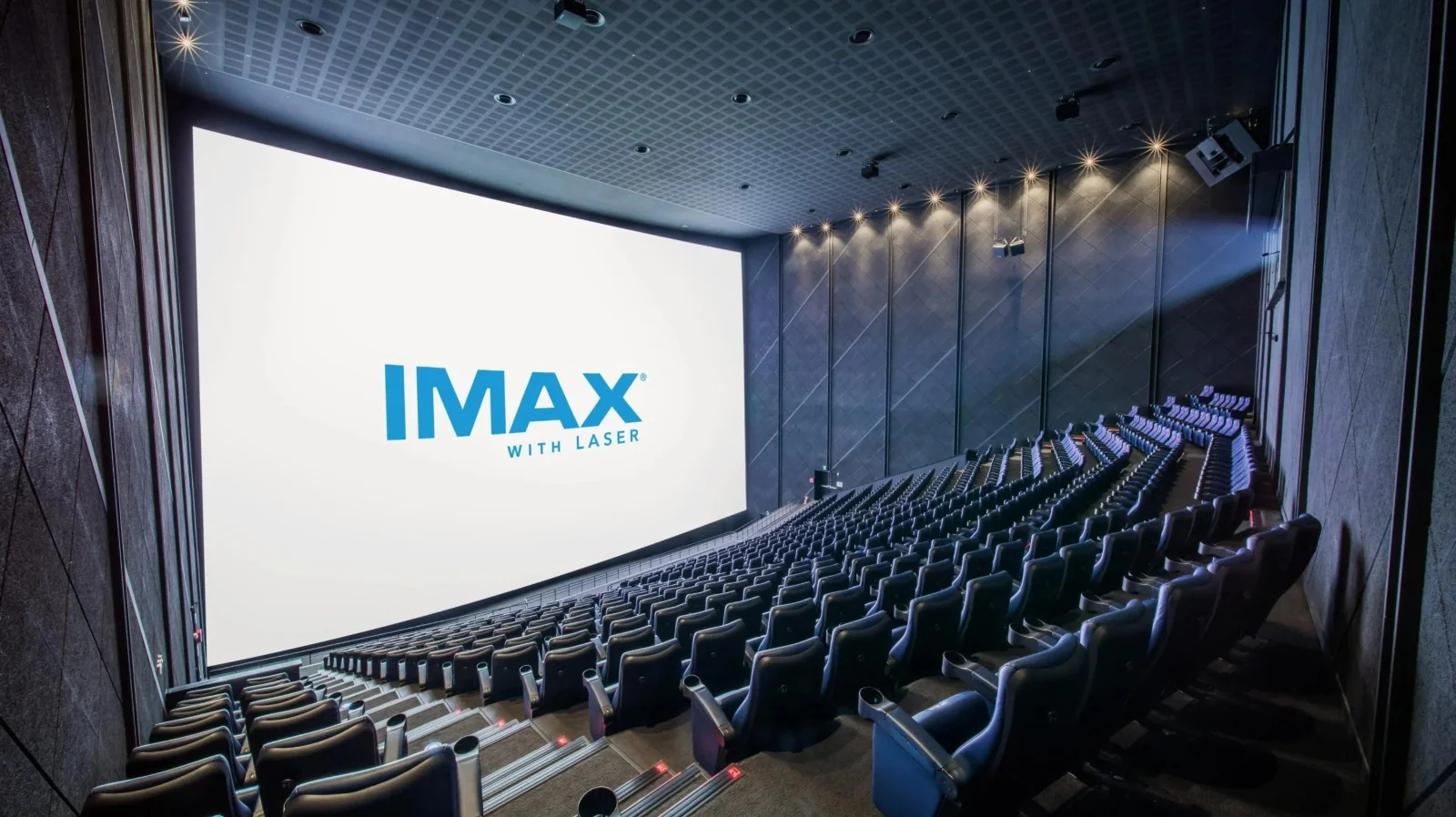

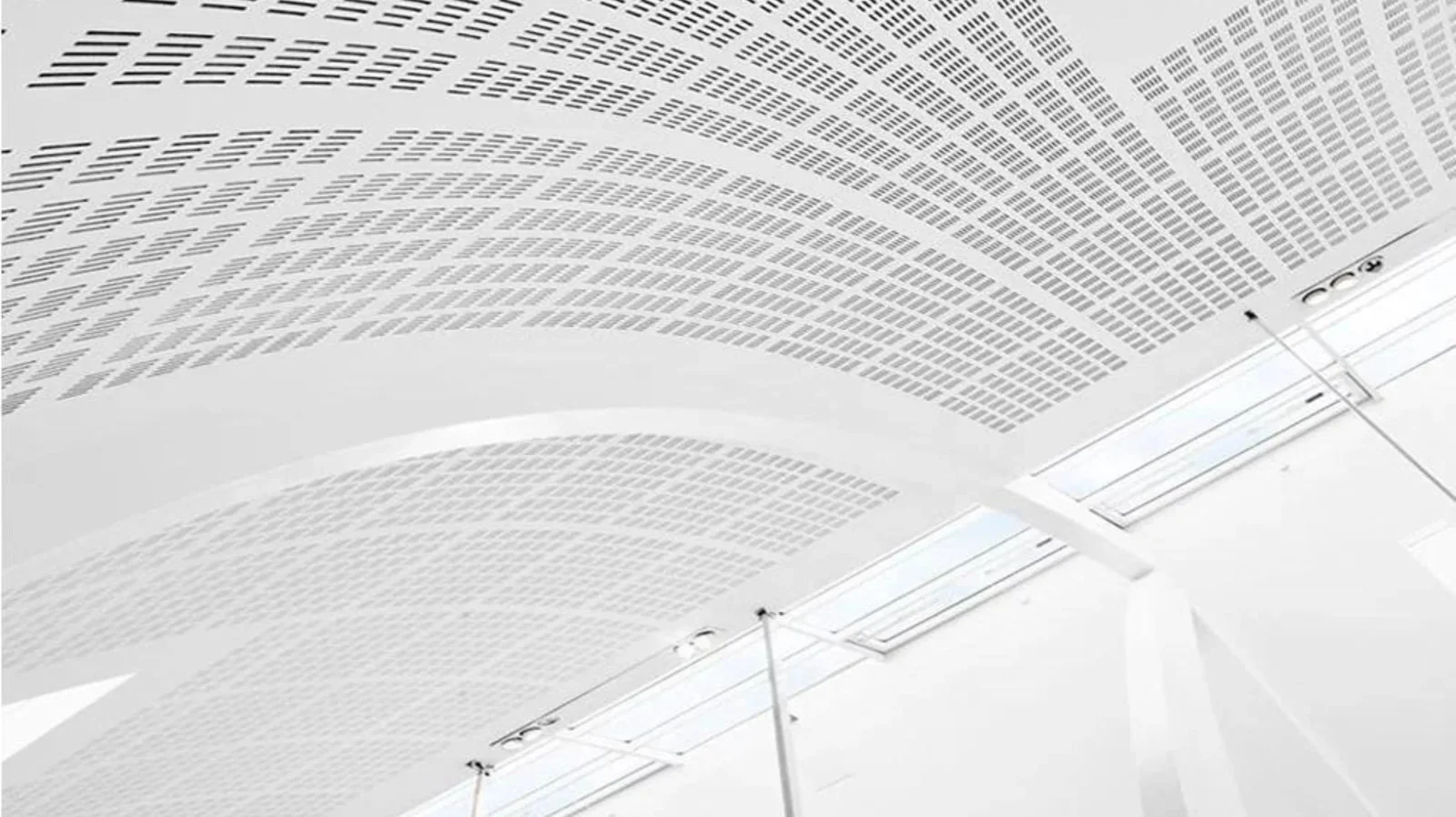

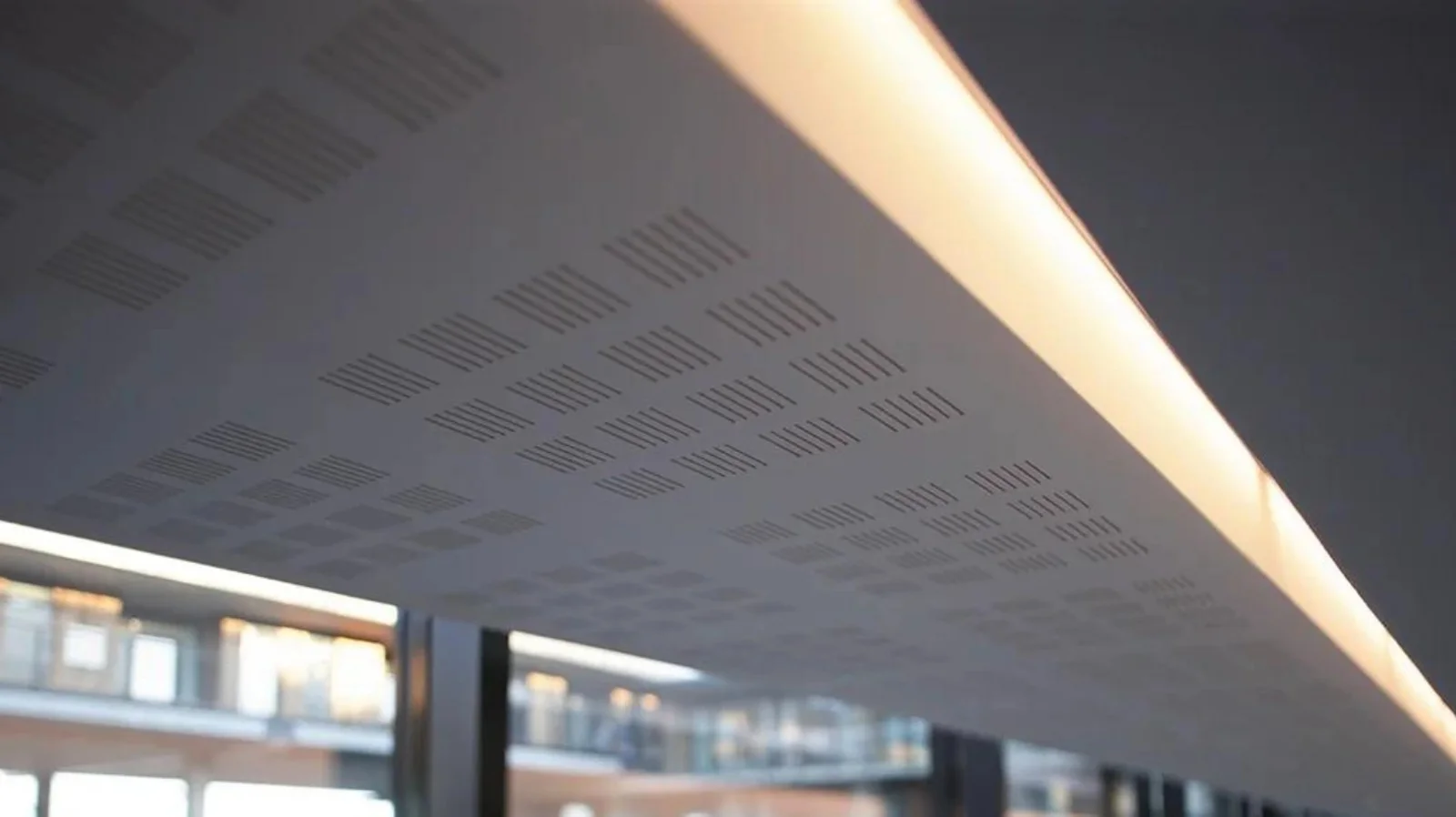

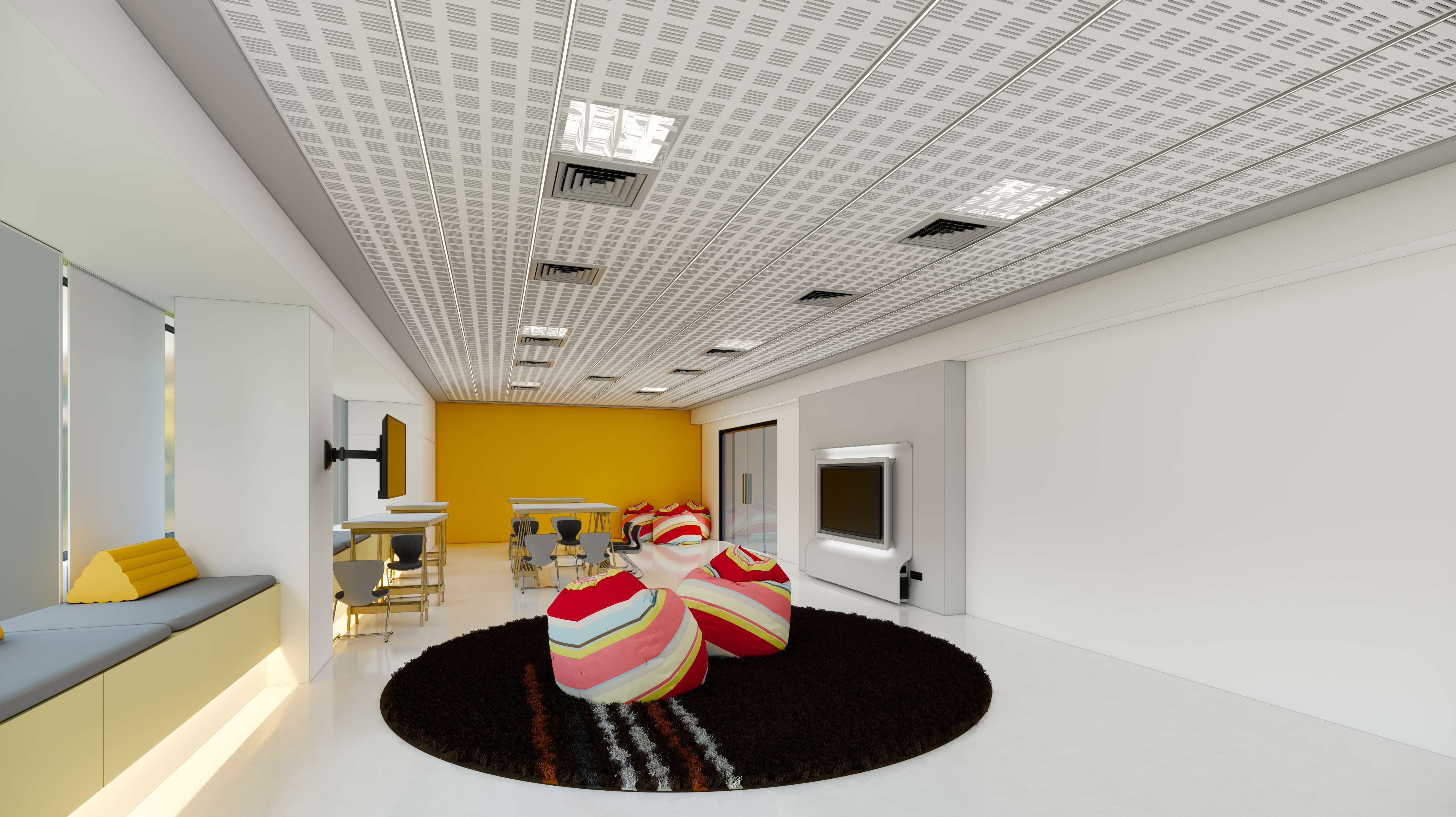

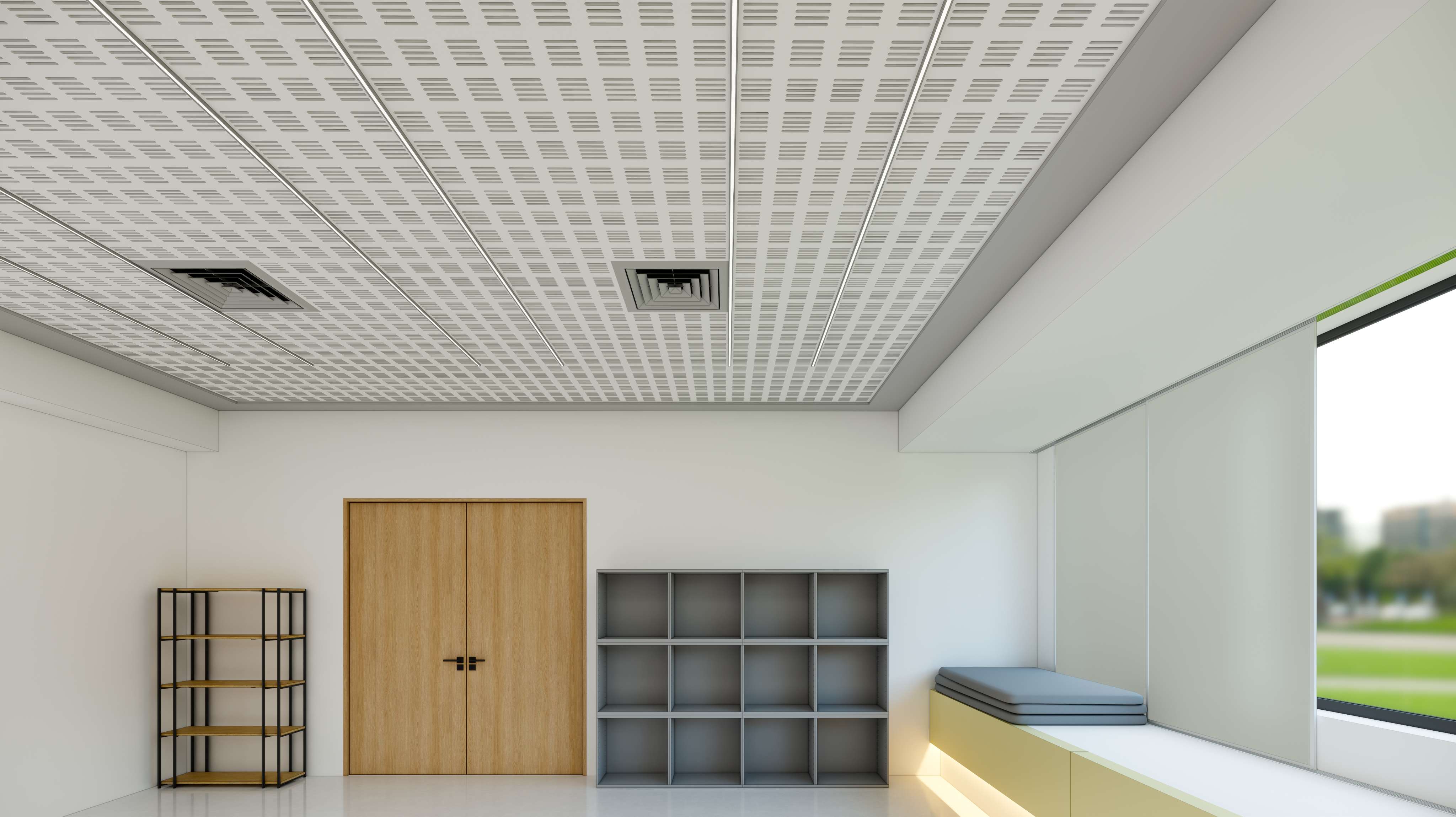

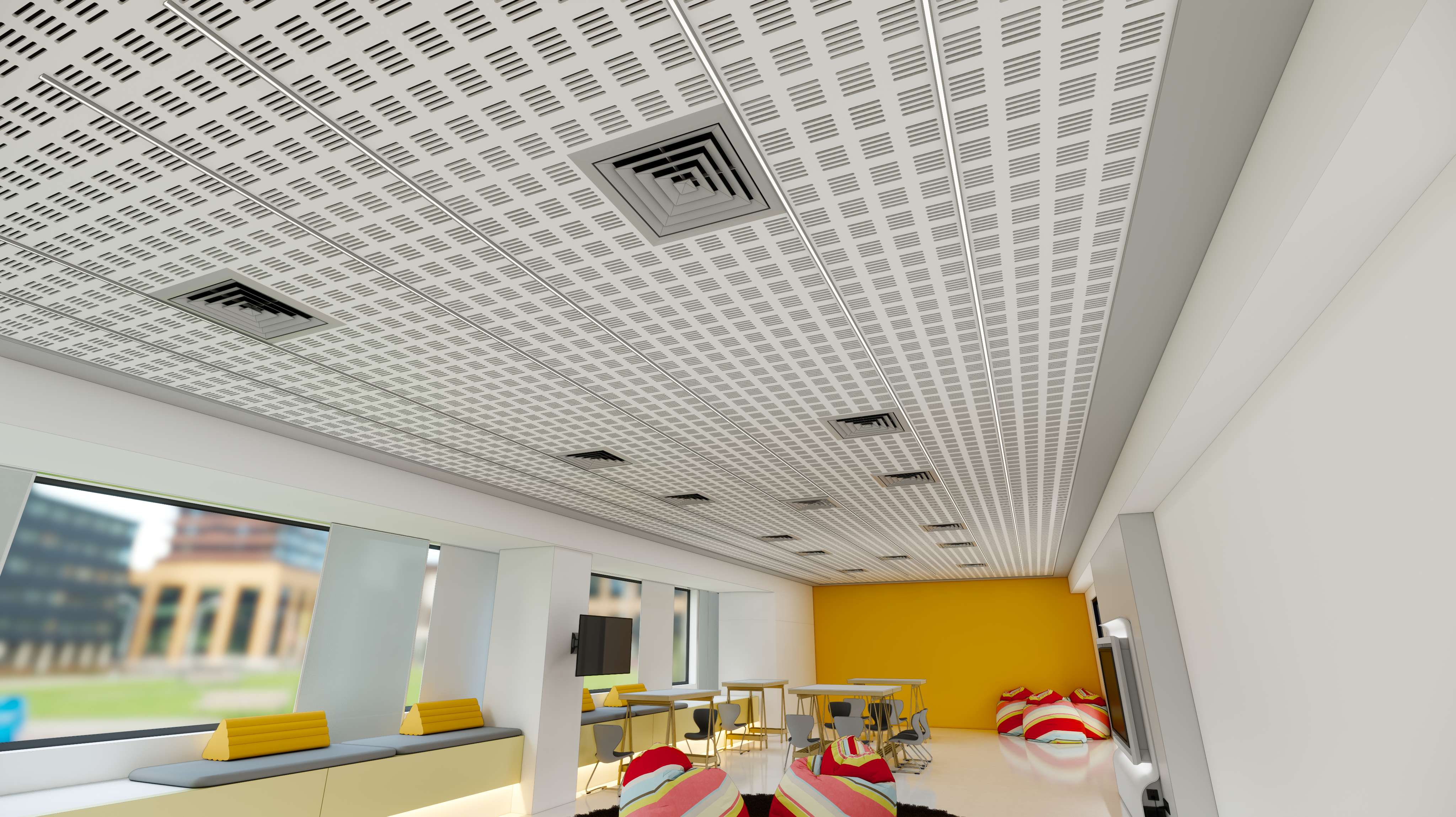

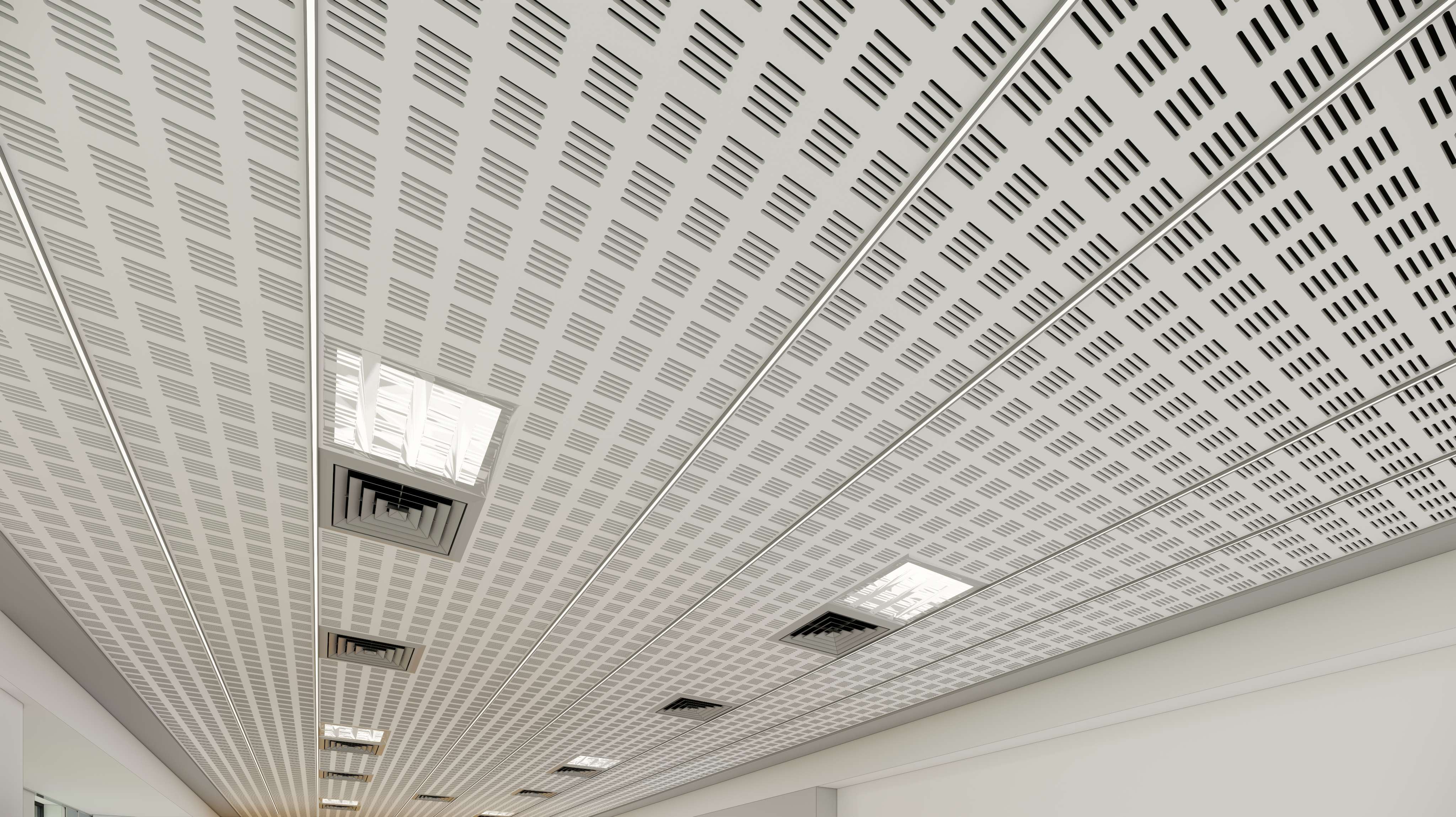

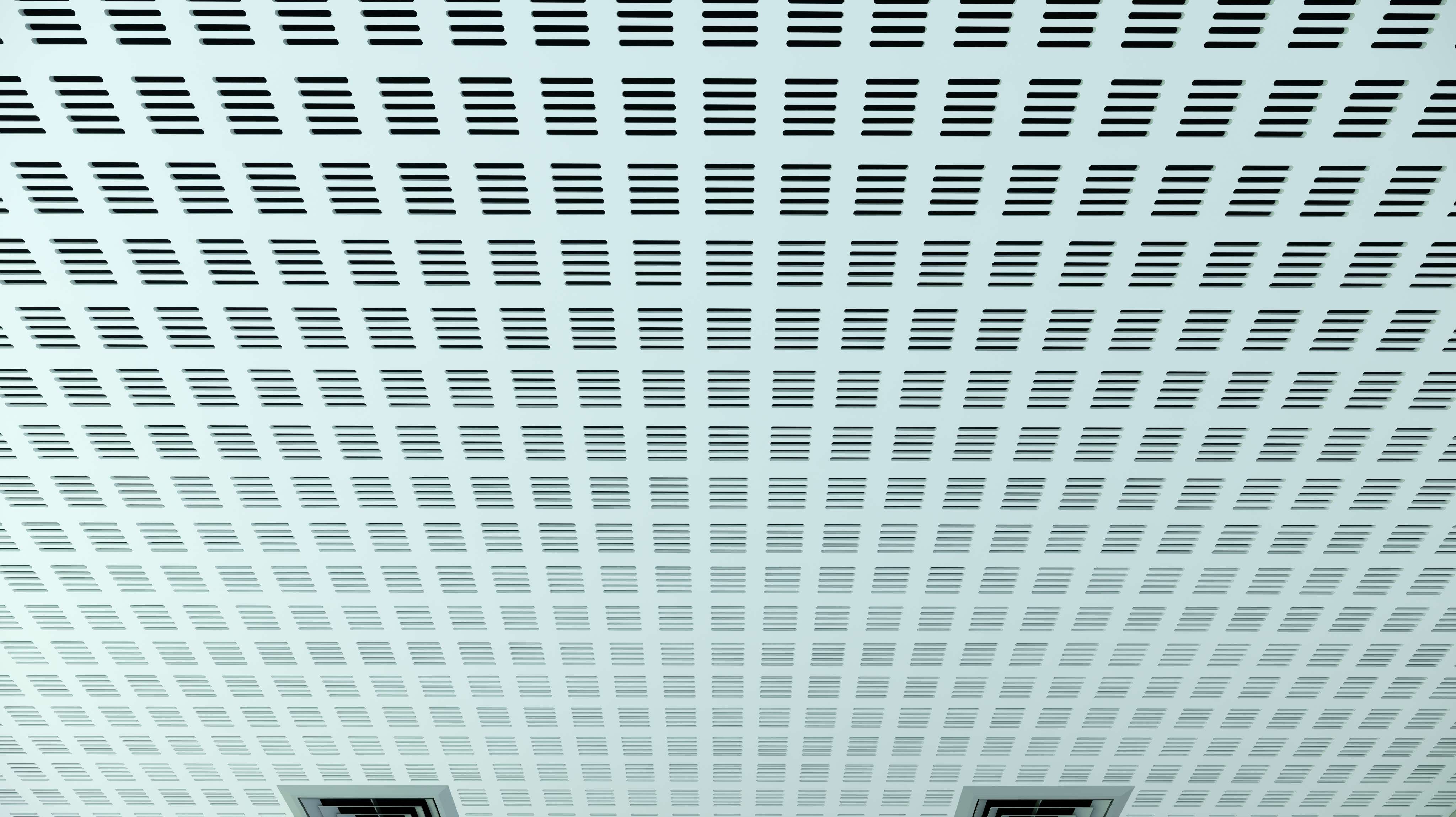

Reference projects with Slitted
Slitted reveals its unique charm, an elegant twist of adaptability. It finds its place in homes, schools, and kindergartens, seamlessly merging with conventional dry-lining, a slender wonder of design.
